Project Item

Solar road light Project

Power

40W

Completed Date

20 - 04 - 2016

Location

Philippines

Solar road light Project description.

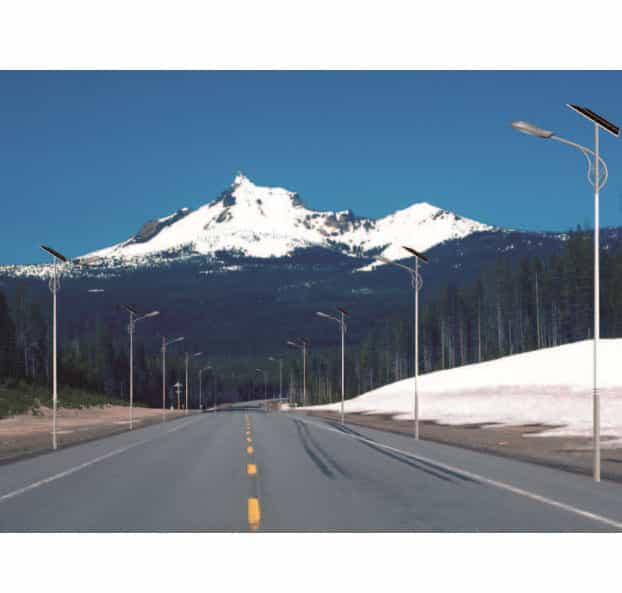

This Solar road light Project is a 40W solar lighting system, built in Philippines, 6m pole.
1500 +
Satisfied clients
2070 +
Order Served
6080 +
5 Star Received
300 +
Happy Customers

Solar road light Project Specification.



1. Solar road light project LED lamp 40W.

A. Low light decay LED from U.S >130 Lm /W ,10,000 hours light decay < 3%.
B. LED beam angle: 150°, rectangular light distribution , high edge illumine. 50W LED lamp ground illumines equals to 250W sodium lamp (HPS), 30 W LED equals to 150W sodium light.

2. Solar road light project Solar Panel 120W.

High efficiency A class chip, high power, stable output, high transparency optical glass

3. Solar road light project Light Pole 6m.

Street Light Pole body using a molding, steel rods (Q235) welds shall be smooth, the entire weld rod protruding portion of the rod formation error should not be greater than ± 1mm. Poles treated with preservatives for the hot-dip galvanizing. Zinc coating surface is smooth and beautiful, shiny consistency. Pole surface spray thickness ≧ 100um.

4. Solar road light project Battery 150Ah

A. By using Nano technology, the battery is waterproof and breathing free.
B. Enable to bury underground to achieve optimal constant environment temperature.
C. Over-charge and over-discharge protection

5. Solar road light project Intelligent digital controller

A. Self development LED intelligent module power consumption 0.0625W to replace regular LED constant current driver which consumer 15-20 of system power.
B. SFC control technology combine with human eyes vision persistence effect(25 frames/second), saves 50% power compared with constant analogue control.
C. LED SWC intelligent control module, achieved unique energy saving model after midnight, saves >15% power.
D. Working duration without sunshine 5 times longer than regular solar street light, realize 100% lighting throughout the year.
