Project Item

Solar outdoor light Project

Power

50W

Completed Date

05 - 08 - 2013

Location

Guatemala

Solar outdoor light Project description.

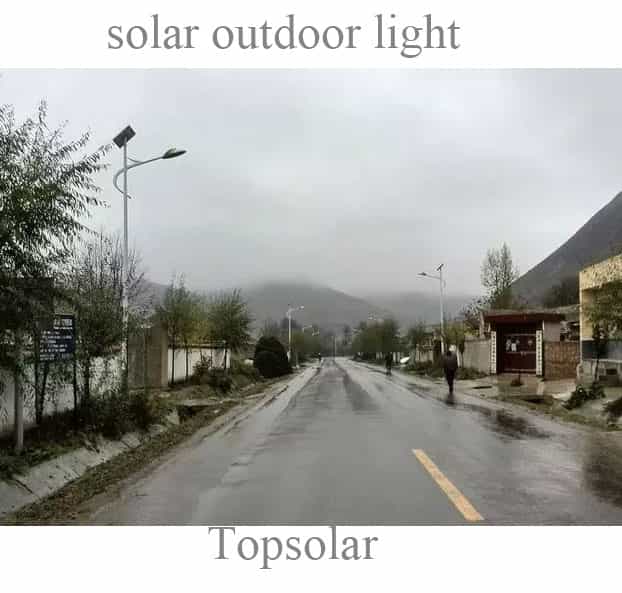

This Solar outdoor light Project is a 50W solar lighting system, built in Guatemala, 7m pole.
1500 +
Satisfied clients
2070 +
Order Served
6080 +
5 Star Received
300 +
Happy Customers

Solar outdoor light Project Specification.



1. Solar outdoor light project LED lamp 50W.

A. Low light decay LED from U.S >130 Lm /W ,10,000 hours light decay < 3%.
B. LED beam angle: 150°, rectangular light distribution , high edge illumine. 50W LED lamp ground illumines equals to 250W sodium lamp (HPS), 30 W LED equals to 150W sodium light.

2. Solar outdoor light project Solar Panel 150W.

High efficiency A class chip, high power, stable output, high transparency optical glass

3. Solar outdoor light project Light Pole 7m.

Street Light Pole body using a molding, steel rods (Q235) welds shall be smooth, the entire weld rod protruding portion of the rod formation error should not be greater than ± 1mm. Poles treated with preservatives for the hot-dip galvanizing. Zinc coating surface is smooth and beautiful, shiny consistency. Pole surface spray thickness ≧ 100um.

4. Solar outdoor light project Battery 200Ah

A. By using Nano technology, the battery is waterproof and breathing free.
B. Enable to bury underground to achieve optimal constant environment temperature.
C. Over-charge and over-discharge protection

5. Solar outdoor light project Intelligent digital controller

A. Self development LED intelligent module power consumption 0.0625W to replace regular LED constant current driver which consumer 15-20 of system power.
B. SFC control technology combine with human eyes vision persistence effect(25 frames/second), saves 50% power compared with constant analogue control.
C. LED SWC intelligent control module, achieved unique energy saving model after midnight, saves >15% power.
D. Working duration without sunshine 5 times longer than regular solar street light, realize 100% lighting throughout the year.
